Arduino UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Compatible Board
CH340G Board compatible with Arduino

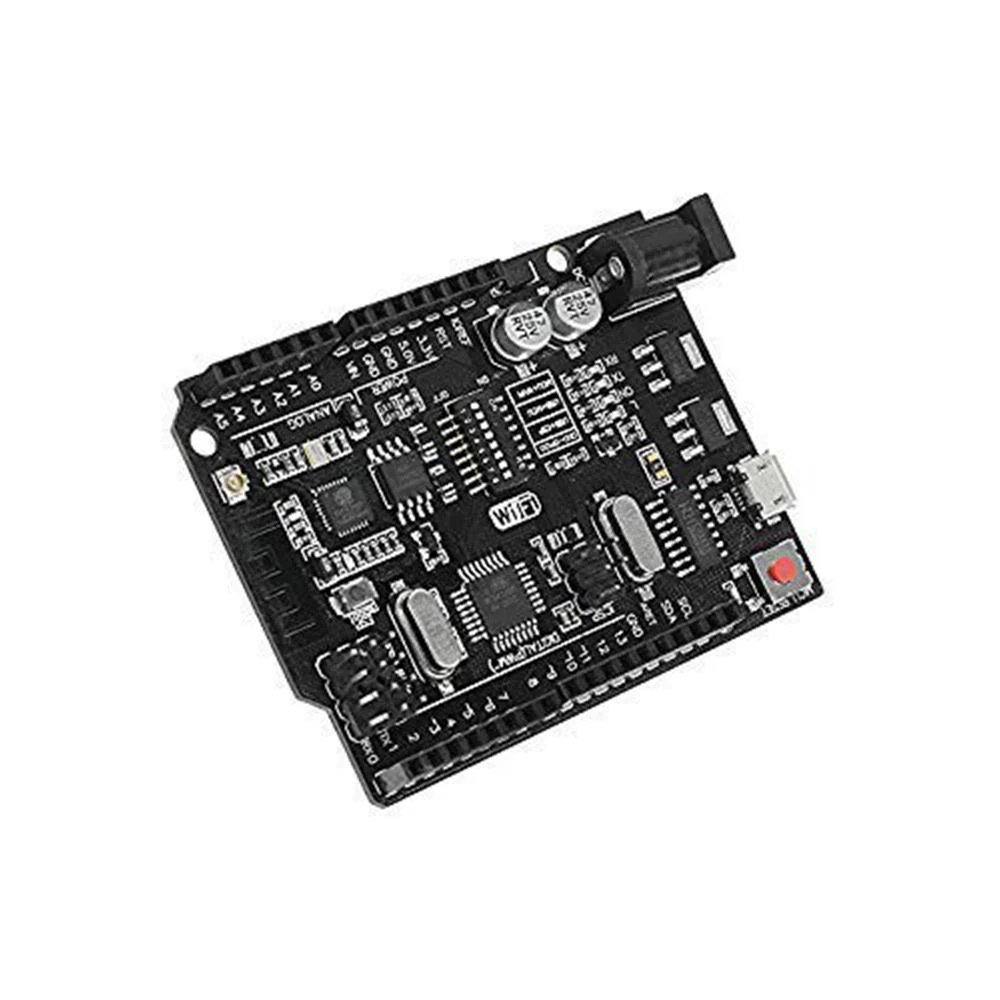

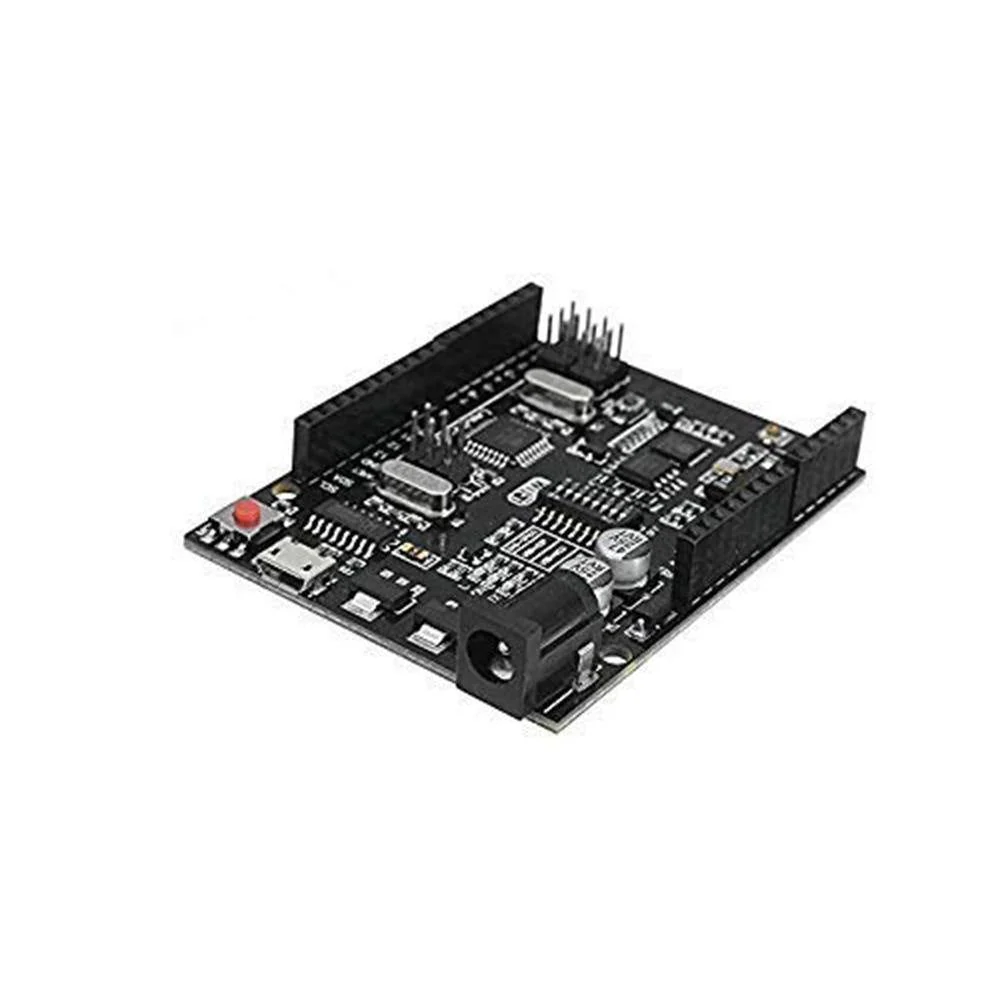

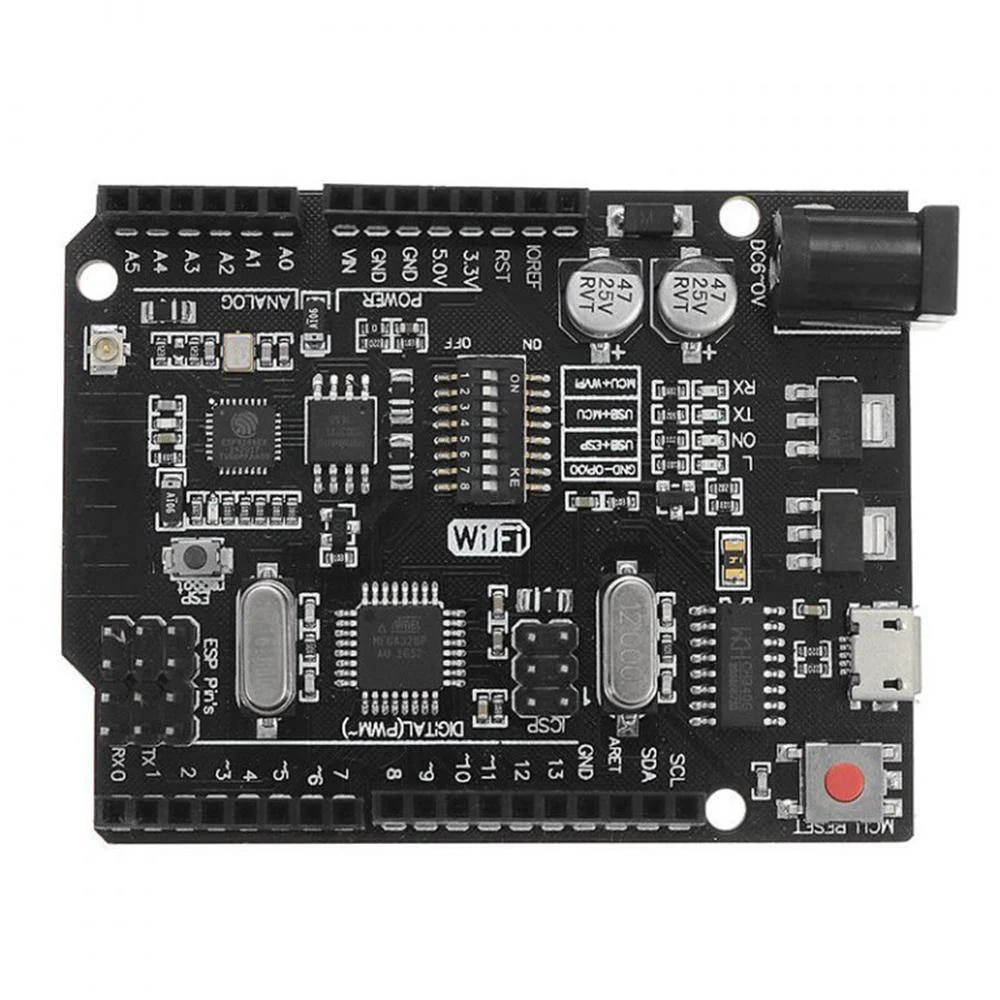

The Uno+WiFi R3 is a fully integrated board that combines the Uno R3 ATmega 328 microcontroller with the WiFi ESP8266 chip, along with 8Mb of memory, all on a single board. Both modules can operate together or separately, each with their own pinout headers.
This board provides a convenient solution for developing new projects that require both Uno and WiFi functionalities. It includes a USB-serial converter, CH340G, allowing for easy updating of sketches and firmware for both ATmega328 and Node MCU ESP8266.
Essentially a modernized version of the classic Arduino UNO R3 board, the Uno+WiFi R3 offers simple operations and includes a DIP switch to connect the different modules in various configurations. LED lights are provided for connecting peripheral sensors and modules, making it a versatile choice for a wide range of projects.
Check out the entire range of Compatible Arduino Boards
 Applications:
- WiFi-based IoT applications.
- IoT home automation.
- Internet Smoked Alarm.
- Incubator Controller.
- Security Alarms.
Comparison With Similar Boards:
|
Specification |
|||
| Microcontroller | ATmega4809 | ATmega328P (SMD) | ATmega328P (Through hole) |
| USB connector | Micro-USB | USB-B | USB-B |
| Digital I/O Pins | 14 | 14 | 14 |
| Analog input pins | 6 | 6 | 6 |
| PWM pins | 5 | 6 | 6 |
| UART | Yes | Yes | Yes |
| I2C | Yes | Yes | Yes |
| SPI | Yes | Yes | Yes |
| I/O Voltage | 5V | 5V | 5V |
| Input voltage (nominal) | 7-12V | 7-12V | 7-12V |
| DC Current per I/O Pin | 20mA | 20 mA | 20 mA |
| Power Supply Connector | Barrel Plug | Barrel Plug | Barrel Plug |
| clock speed | 16 MHz | 16 MHz | 16 MHz |
| USB-Serial chip | ATmega16U2 | CH340 | ATmega16U2 |
| SRAM | 6.144KB | 2KB | 2KB |
| Flash Memory | 48KB | 32KB | 32KB |
| EEPROM | 256 Bytes | 1KB | 1KB |
| Dimensions | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm |
| RADIO MODULE | u-blox NINA-W102 | - | - |
| Inertial Measurement Unit | LSM6DS3TR (3D accelerometer) | - | - |
| LED_BUILTIN | 25 | 13 | 13 |
| Wi-Fi Microprocessor | Yes | - | - |
