Octal 3-state Inverting Buffer IC - 74HC540
Octal 3-state Inverting Buffer IC - 74HC540
The 74HC Series 74HC540 is a 20 Pin Octal 3-state Inverting Buffer IC having a 2V to 6V Operating Voltage range with a 6mA output current. The 3-STATE  buffers utilize advanced silicon-gate  CMOS  technology.  They possess high drive current outputs, enabling high-speed operation even when driving large bus capacitances.
These circuits achieve speeds comparable to low-power Schottky devices while retaining the advantage of CMOS circuitry, i.e., high noise immunity, and low power consumption. Both devices have a fanout of 15 LS-TTL equivalent inputs. The  74HC540  is an inverting buffer and the MM74HC541 is a non-inverting buffer. The 3-STATE control gate operates as a two-input NOR such that if either G1 or  G2 is HIGH,  all eight outputs are in the high-impedance state.

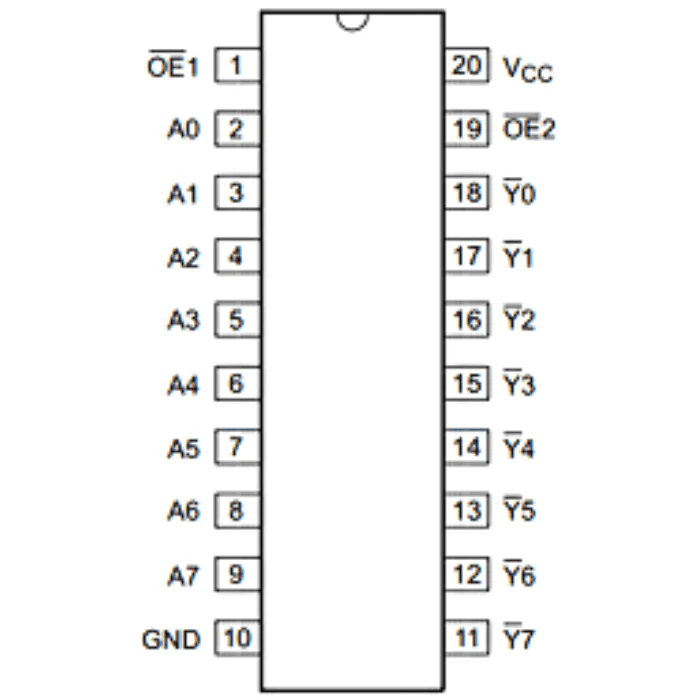

Pinout:
Original: $0.35
-71%$0.35
$0.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Octal 3-state Inverting Buffer IC - 74HC540
The 74HC Series 74HC540 is a 20 Pin Octal 3-state Inverting Buffer IC having a 2V to 6V Operating Voltage range with a 6mA output current. The 3-STATE  buffers utilize advanced silicon-gate  CMOS  technology.  They possess high drive current outputs, enabling high-speed operation even when driving large bus capacitances.
These circuits achieve speeds comparable to low-power Schottky devices while retaining the advantage of CMOS circuitry, i.e., high noise immunity, and low power consumption. Both devices have a fanout of 15 LS-TTL equivalent inputs. The  74HC540  is an inverting buffer and the MM74HC541 is a non-inverting buffer. The 3-STATE control gate operates as a two-input NOR such that if either G1 or  G2 is HIGH,  all eight outputs are in the high-impedance state.
Pinout:
