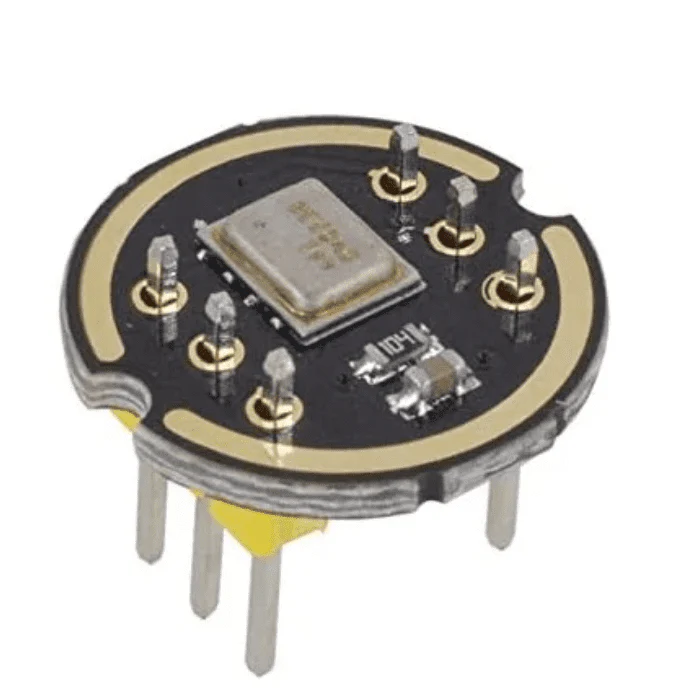

INMP441 MEMS High Precision Omnidirectional Microphone Module I2S
INMP441 MEMS High Precision Omnidirectional Microphone Module I2S
The INMP441 is a digital MEMS microphone that is omnidirectional and has a bottom port. It is designed to be high-performing and low-power, and the complete solution includes a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management, and a 24-bit I2S interface that is industry-standard.
The I2S interface is especially useful because it allows for direct connection to digital processors such as microcontrollers and DSPs without the need for an audio codec. With a high signal-to-noise ratio, the INMP441 is a great option for applications in close proximity. It also has a flat wideband frequency response that results in natural and high-definition sound.
- SCK: Serial data clock for I2S interface
- WS: Serial data word selection for I2S interface
- L/R: Left/Right channel selection.
- When set to low, the microphone outputs a signal on the left channel of the I2S frame.
- When set to high level, the microphone outputs signals on the right channel
- SD: Serial data output of the I2S interface.
- VCC: Input power, 1.8V to 3.3V.
- GND: power ground
- SCK -GPIO14
- SD – GPIO32
- WS – GPIO15
- L/R – GND
- GND – GND
- VDD – VDD3.3
Features:
- Digital I2S interface with high precision 24-bit data
- High signal to noise ratio is 61 dBA
- High sensitivity – 26 dBFS
- Stable frequency response from 60 Hz to 15 kHz
- Low power consumption: low current consumption 1.4 mA
- High PSR: -75 dBFS
