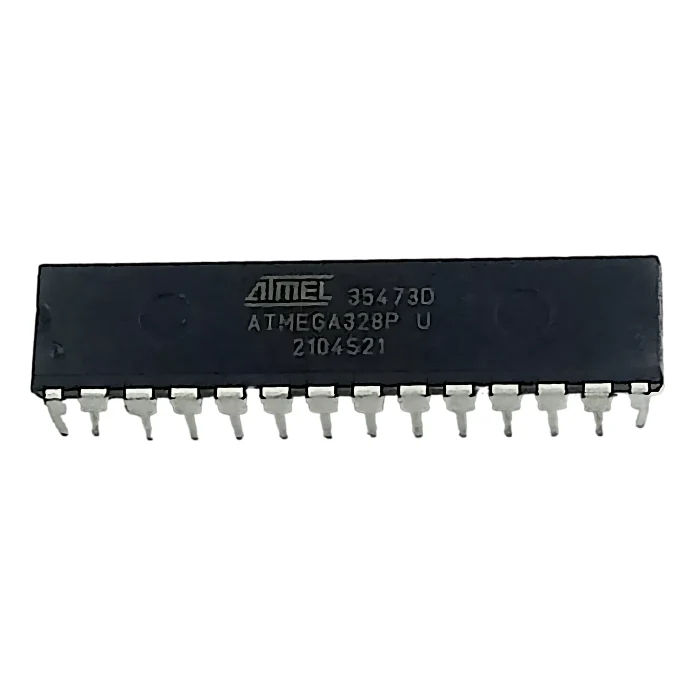

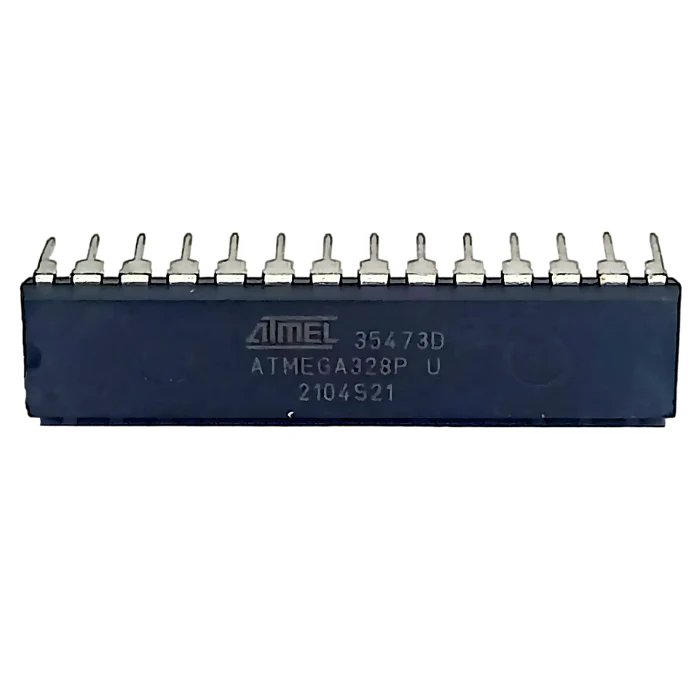

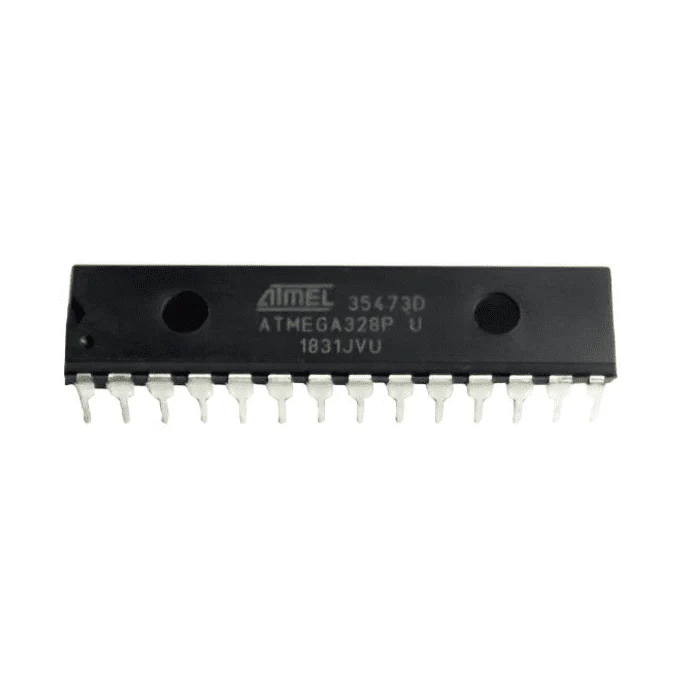

ATmega328P-U PDIP-28 8 BIT Microcontroller IC
ATmega328P-U PDIP-28 8 BIT Microcontroller IC
The Atmel ATmega328 IC is a 32K 8-bit microcontroller based on the AVR architecture. Many instructions are executed in a single clock cycle providing a throughput of almost 20 MIPS at 20MHz. The ATMEGA328P-U comes in an PDIP 28 pin package and is suitable for use on our 28 pin AVR Development Board. The ATmega328P-U AVR is supported with a full suite of program and system development tools including C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation Kits.
Applications:
- Industrial control systems
- Switched-mode power supply (SMPS) and power regulation systems
- Digital data processing
- Analog signal measuring and manipulation
- Embedded systems like coffee machines, vending machines
- Motor control systems
- Display units
Key Features:
- Additional Features Features
- Internal calibrated oscillator
- Power on reset and programmable brown out detection
- External and internal interrupts
- 6 sleep modes including idle, ADC noise reduction, power save, power down, standby, and extended standby
- I/O and Package
- 23 programmable I/O lines
- 28 pin PDIP package
Speed Grades:
- 0-4 MHz at 1.8-5.5V
- 0-10 MHz at 2.7-5.5V
- 0-20 MHz at 4.5-5.5V
Low power consumption mode at 1.8V, 1 MHz and 25°C:
- Active Mode: 0.3 mA
- Power-down Mode: 0.1 ?A
- Power-save Mode: 0.8 ?A (Including 32 kHz RTC)
Pinout:
