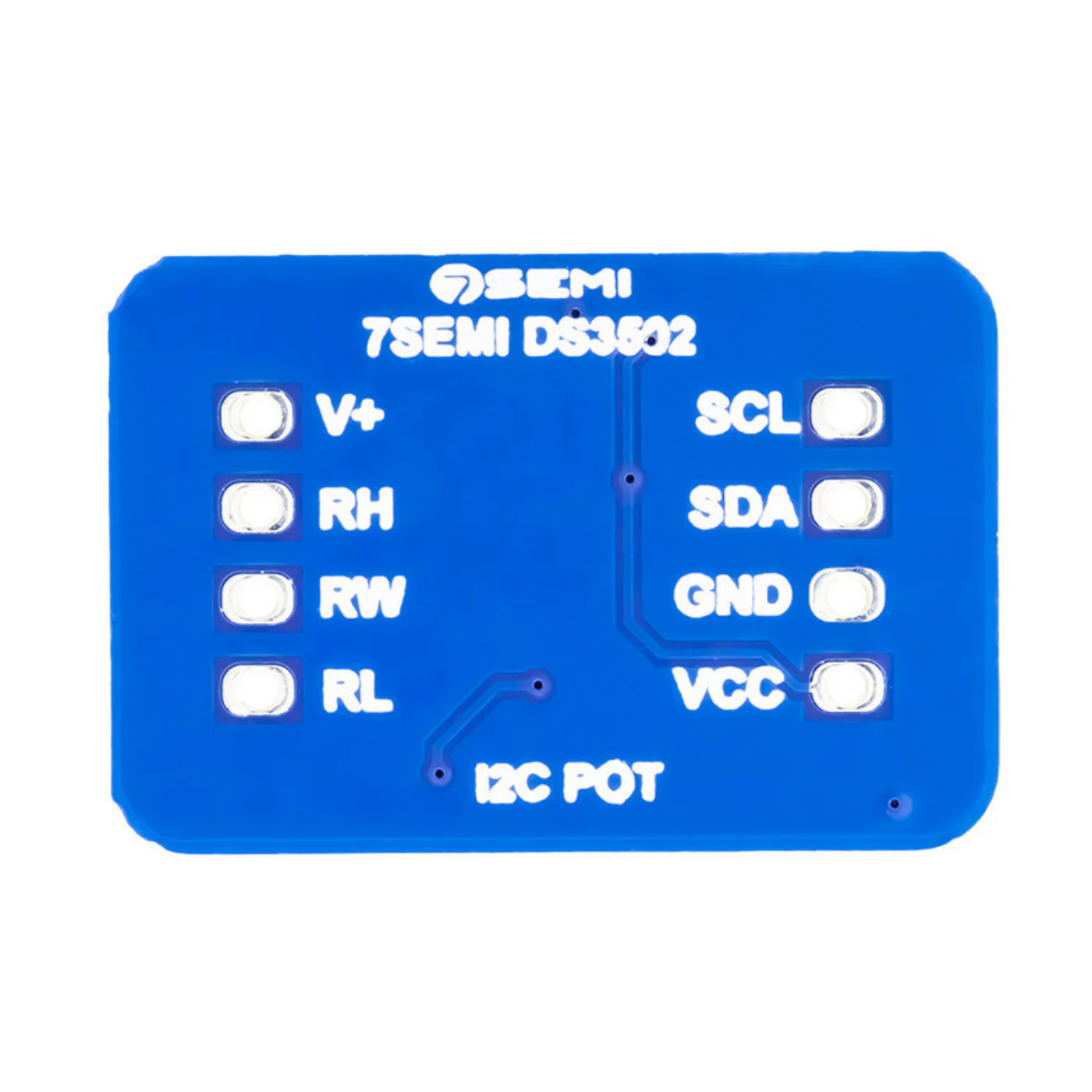

7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module
7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module
The 7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module is a compact DS3502 digital potentiometer designed for accurate and repeatable resistance control using a microcontroller. This digital potentiometer 10k provides 128 discrete resistance steps across a full 0Ω to 10kΩ range, allowing fine-tuned analog voltage adjustment through the I2C interface.
With support for both 3.3V and 5V logic levels and an analog voltage operating range of 4.5V to 15.5V, it is well-suited for signal conditioning, calibration, audio control, and IoT or embedded electronics projects where precise resistance tuning is required.
Features:
- High-precision control: Includes 128 wiper tap points for fine-tuning your circuit's functionality.
- Supports a full-scale resistance of 10kΩ and an analog working voltage of 4.5V to 15.5V.
- I2C-Compatible Interface: Works seamlessly with I²C busses and can run at speeds up to 400kHz.
- Address pins allow up to four DS3502 devices to share a single I²C bus, providing more control choices.
- Easy Integration: 4 pin 2.0 mm pitch JST connector for trouble-free integration.
- Robust Design: Operates reliably throughout a wide temperature range of -40°C to +100°C, making it suited for a variety of settings.
Original: $3.43
-70%$3.43
$1.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module
The 7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module is a compact DS3502 digital potentiometer designed for accurate and repeatable resistance control using a microcontroller. This digital potentiometer 10k provides 128 discrete resistance steps across a full 0Ω to 10kΩ range, allowing fine-tuned analog voltage adjustment through the I2C interface.
With support for both 3.3V and 5V logic levels and an analog voltage operating range of 4.5V to 15.5V, it is well-suited for signal conditioning, calibration, audio control, and IoT or embedded electronics projects where precise resistance tuning is required.
Features:
- High-precision control: Includes 128 wiper tap points for fine-tuning your circuit's functionality.
- Supports a full-scale resistance of 10kΩ and an analog working voltage of 4.5V to 15.5V.
- I2C-Compatible Interface: Works seamlessly with I²C busses and can run at speeds up to 400kHz.
- Address pins allow up to four DS3502 devices to share a single I²C bus, providing more control choices.
- Easy Integration: 4 pin 2.0 mm pitch JST connector for trouble-free integration.
- Robust Design: Operates reliably throughout a wide temperature range of -40°C to +100°C, making it suited for a variety of settings.
