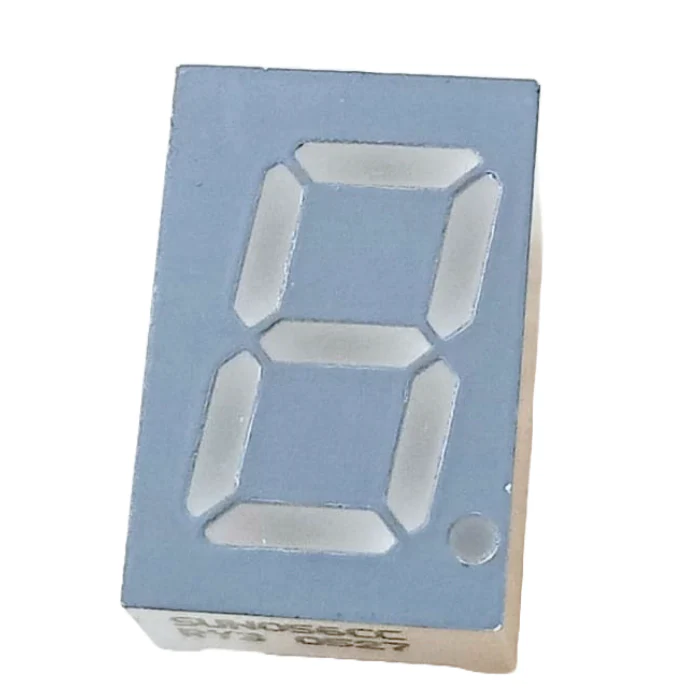

7 Segment Led Display (Common Cathode)

7 Segment Led Display (Common Cathode), is a form of an electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.

In a common cathode display, all of the LED segment cathode connections are connected to logic "0" or ground. Individual segments are illuminated by applying a "HIGH" or logic "1" signal to the individual Anode terminals via a current limiting resistor (a-g).

Read more: Implementation of 7 segment LED display Controller on FPGA

Seven-segment displays or ( 7 segment displays) are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information. If you want to use a 7 Segment Led Display in your Arduino project, then you will need a few components like breadboard , jumper wires , resistors , capacitors and transistors.

Robocraze offers at best Common Cathode 7 segment display price in India. Don't settle for anything less than the best— Buy Common Cathode 7 Segment Display now for your next project from Robocraze.



Get 0.96” OLED Display Module – High-Contrast Blue Screen

Common Cathode Configuration

Common Cathode 7 Segment Display Truth Table

In a common cathode 7 segment display, all the cathodes of the LEDs are linked together. Each LED is accompanied by a current-limiting resistor connected between it and the +VCC. In this configuration, to activate a specific LED, it is connected to +5V. Thus, by connecting inputs a to g to VCC, digits ranging from 0 to 9 can be displayed. For instance, to display the digit 3, LEDs a, b, c, d, and g will emit light, while the remaining LEDs will remain inactive. Consequently, the illuminated LEDs will take the form of the digit 3.

Common Cathode 7 Segment Display Pinout:

Features:

• Pin Type: DIP (Dual In-line Package)
• Common Cathode Configuration
• High Light Intensity Output for optimal viewing
• Simple and easy interface with microcontrollers

Applications:

• Digital Clocks: Used to display time in a clear and easily readable format.
• Electronic Meters: Applied in various measuring instruments for numerical data display.
• Basic Calculators: Utilized for showcasing numerical calculations and results.
• Counters and Timers: Applied in devices that count or time events, such as countdown timers.
• Temperature Displays: Utilized in temperature monitoring systems for numeric temperature readouts.
• Numeric Displays: Suitable for any application requiring the display of numeric information.
• DIY Electronics Projects: Used by hobbyists and DIY enthusiasts in various electronic projects.
• Price Displays: Employed in retail settings for displaying product prices.
• Scoreboards: Used in sports and games to display scores and relevant information.
• Process Control Systems: Integrated into systems for displaying numeric process parameters.

How to Check 7-Segment Display is Common Anode or Cathode
