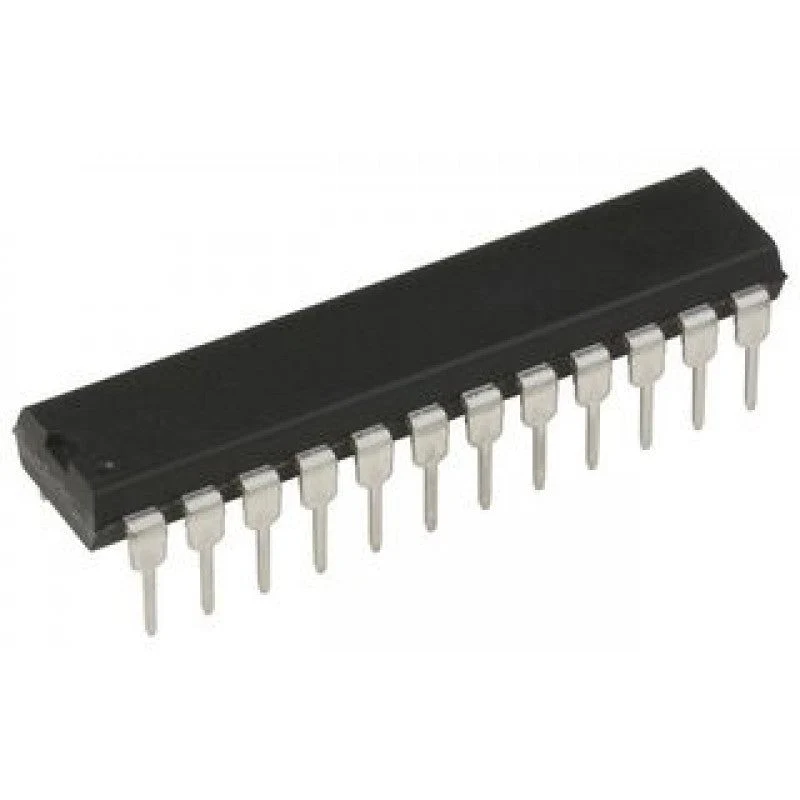

CD4514 - 4 Bit Latch/4-16 Line Decoder IC
CD4514 - 4 Bit Latch/4-16 Line Decoder IC
The CD4x Series CD4514 IC is a 4-to-16-line decoder with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors. These circuits are primarily used in decoding applications where low power dissipation and/or high noise immunity are required.
The CD4514 (output active high option) presents a logical â1â at the selected output. The input latches are RâS type flip-flops, which hold the last input data presented prior to the strobe transition from â1â to â0â. This input data is decoded and the corresponding output is activated. An output inhibits line is also available.Â
Pinout:
Original: $1.77
-70%$1.77
$0.53Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
CD4514 - 4 Bit Latch/4-16 Line Decoder IC
The CD4x Series CD4514 IC is a 4-to-16-line decoder with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors. These circuits are primarily used in decoding applications where low power dissipation and/or high noise immunity are required.
The CD4514 (output active high option) presents a logical â1â at the selected output. The input latches are RâS type flip-flops, which hold the last input data presented prior to the strobe transition from â1â to â0â. This input data is decoded and the corresponding output is activated. An output inhibits line is also available.Â
Pinout:
